Simmelian backbone extraction
This transformation algorithm is meant to make network data more easy to visualize and analyze, in particular with regard to detecting underlying community structures. The method is based on local ranking and overlap calculations to extract a Simmelian backbone of strong and redundant ties. More detailed background information is provided in
- Bobo Nick, Conrad Lee, Pádraig Cunningham, Ulrik Brandes: Simmelian Backbones: Amplifying Hidden Homophily in Facebook Networks, to appear in Proc. ASONAM 2013.
For questions and comments, or if you want to apply the concept to big data, please contact Bobo Nick.
Where to find

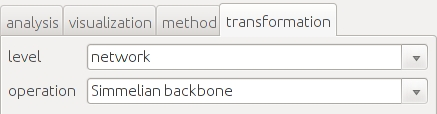

Access is given via the transformation tab in the left-hand side of the visone window: set level to network and operation to Simmelian backbone.
The Simmelian backbone is extracted from a ranked neighborhood graph. For this purpose, each undirected edge is split into two contrary directed edges, and the algorithm will rank each node's (outgoing) neighbors according to an associated (ordinal) link strength attribute:
- If uniform is selected (default), the algorithm will calculate a link strength attribute on its own (the Simmelian strength; saved as triadType300).
- Otherwise, the algorithm will use the attribute that was provided.
Neighbors with equal link strength are equally ranked with the best available rank. The resulting neighborhood rankings are saved in a link attribute termed ranking. (For technical reasons, if the selected link strength attribute is termed ranking or redundancy it will be renamed into backbone-weight (ranking) or backbone-weight (redundancy), respectively.)
Next, for designated pairs of nodes, the algorithm will calculate the redundancy of top-ranked neighbors. Always, each redundancy assessment is associated with a directed link (from ego to alter) in the ranked neighborhood graph. The resulting redundancy values are saved in a link attribute termed redundancy.

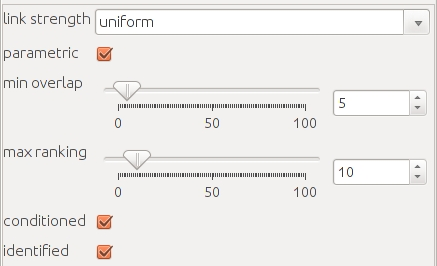

If parametric is selected (default), the required redundancy for a link to be included in the Simmelian backbone is specified in terms of a necessary number of top-ranked common neighbors (regarding ego and alter associated with this link):
- You can use the min overlap parameter to specify a minimal required overlap of top-ranked common neighbors (default 5).
- You can use the max ranking parameter to specify the maximal rank which is still regarded as a top-rank (default 10). That is, those outgoing neighbors that have been attached a rank greater than max ranking will not contribute in the redundancy calculation.
- You can use the conditioned parameter to specify for which pairs of actors the overlap is calculated:
- if selected (default), the overlap calculation is only performed for those links which have been top-ranked themselves
- if deselected, the overlap calculation is performed for each directed link in the ranked neighborhood graph.
Special cases: If conditioned is true, non-top-ranked links will have undefined overlap values. Setting min overlap to zero will imply that only links with undefined overlap value are removed from the network.
In the non-parametric variant of the transformation algorithm, a redundancy calculation is triggered for each link in the ranked neighborhood graph. The redundancy is defined as the maximum (ranked) Jaccard coefficient that is found when iteratively comparing top ranked neighbors (including more and more ranks). For a link to be included in the Simmelian backbone, the best found Jaccard coefficient has to be at least one half.
For any of the two variants (parametric, or non-parametric redundancy assessment), you can decide whether ego is identified with alter in the redundancy calculations, i.e. reciprocity within top ranks is counted as overlap (default), or whether ego's rank in alter's neighborhood and alter's rank in ego's neighborhood are not taken into account in the redundancy assessment.
For convenience, if layout is selected, visone's quick layout functionality is used to visualize the modified network structure at the end of the algorithm; otherwise, all node positions remain as before.

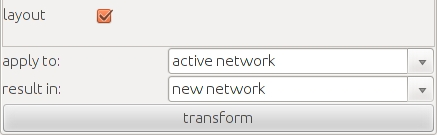

Use apply to to select the network(s) for which the calculations shall be performed. Since the network structure is altered by the algorithm, result in a new network rather than this network is proposed as default. The calculation is triggered by clicking the transform button at the bottom.
